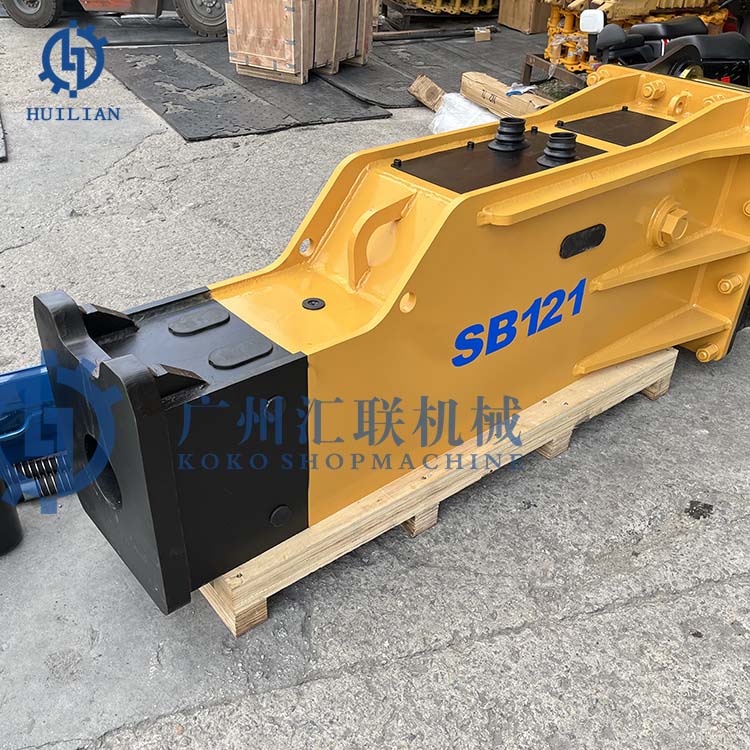

Factory Price OEM SB121 Silenced Type Hydraulic Breaker Hammer for 30Ton 40ton Excavators Concrete Rock Breaker SB121 SB130 SB150 breaker spare parts
MODEL | WEIGHT(KG) BOX TOP SIDE | LENGTH(MM) BOX TOP SIDE | REQUIRED OIL FLOW L/MIN | WORKING PRESSURE KG/CM M2 | IMPACT RATE B.P.M | HOSE DIAMETER B.P.M | CHISEL DIAMETER IN | CHISEL LENGTH MM | APPLICABLE EXCAVATOT M3 |
EB-45 | 130 135 120 | 1265 1280 760 | 20-40 | 90-120 | 700-1200 | 1/2 | 45 | 450 | 0.03-0.1 1.2-3 |
EB-53 | 200 200 200 | 1342 1400 1140 | 20-50 | 90-120 | 600-1100 | 1/2 | 53 | 530 | 0.06-0.2 2.5-4.5 |
EB-68 | 330 330 327 | 1590 1610 1360 | 40-70 | 110-140 | 500-900 | 1/2 | 70 | 700 | 0.15-0.3 2.5-4.5 |
EB-75 | 450 450 468 | 1859 1822 1560 | 50-90 | 120-150 | 400-800 | 1/2 | 75 | 750 | 0.2-0.35 6-9 |
EB-85 | 680 680 650 | 2101 2096 1774 | 60-100 | 130-160 | 40D-800 | 3/4 | 85 | 85o | 0.25-0.5 7-14 |
EB-100 | 1000 100o 8B7 | 2401 2351 1981 | 80-110 | 150-170 | 350-700 | 3/4 | 100 | 105o | 0.4-0.6 11-16 |
EB-125 | 1300 1320 1250 | 2592 2600 2300 | 90-120 | 150-170 | 350-650 | 1 | 125 | 1100 | 0.5-0.7 15-18 |
EB-135 | 2000 2000 1800 | 2822 2762 2322 | 100-150 | 160-180 | 350-650 | 1 | 135 | 1200 | 0.7-0.8 18-21 |
EB-140 | 2050 2050 1960 | 2828 2040 2363 | 120-180 | 160-180 | 350-650 | 1 | 140 | 1250 | 0.7-0.9 18-26 |
EB-150 | 2800 2300 2670 | 3052 3047 2616 | 150-210 | 160-180 | 300-450 | 1 | 150 | 1400 | 0.3-1.2 25-30 |
EB-155 | 2800 2300 2670 | 3254 3083 2776 | 18O-240 | 160-180 | 300-450 | 1~1/4 | 155 | 1400 | 1.1-1.4 28-35 |
EB-165 | 340D 3200 3350 | 3450 3500 3000 | 200-260 | 160-180 | 250-400 | 1~1/4 | 165 | 1500 | 1.2-1.7 30-45 |
EB-175 | 4200 4200 3500 | 3709 3617 3200 | 210-290 | 160-180 | 200-350 | 1~1/4 | 175 | 1500 | 1_4-2.0 40-55 |
EB-180 | 4500 4500 4200 | 38oD 3800 3300 | 250-340 | 160-180 | 250-320 | 1~1/4 | 180 | 1600 | 1.9-3.5 45-60 |
EB-185 | 4500 4500 4200 | 3800 3800 3300 | 250-340 | 160-180 | 250-320 | 1~1/4 | 180 | 1600 | 1.9-3.5 45-60 |
EB-190 | 4650 4650 4350 | 3750 3750 3260 | 260-320 | 170-190 | 200-300 | 1~1/2 | 190 | 1600 | 1.9-4.5 45-75 |
EB-195 | 4650 46504350 | 3750 3750 3260 | 260-320 | 170-190 | 200-300 | 1~1/2 | 190 | 1600 | 1.9-4.5 45-75 |
EB-210 | 6350 6200 6100 | 4550 4500 4350 | 280-390 | 160-180 | 200-350 | 1~1/2 | 210 | 1800 | 3.8-7.5 70-100 |
What is the Hydraulic Breaker?
Hydraulic breaker is an important operation accessory of excavator,
which can break stones and rocks more effectively in engineering
construction. It is often used in mountain mining, tunnel
excavation, infrastructure demolition and crushing, hull rust
removal, ice breaking and frozen soil breaking, etc.
Side Type Breakers
★Breaker's overall length reduced
★More convenient for chisel to more backwards
★Easy mintenance
Silence Type Breakers
★Slience Type Breakers
★Low noise level
★Full-closed box design protects the main body from damage
Top Type Breakers
★Breakers'length longer and weight heavier
★Easy control and position,more convenient to do breaking jobs
★Vertical open-bracket design reduce the malfunction rate chisel
Through bolt
High strength material and heat treatment prevent parts sudden
fracture and ensure long life
Nitrogen gas
Reduce the recoil force and increase impact power
Main Valve
Internal control valve system is more efficient by 10%-15% than
other breaker's valve , easy to maintain and change, stay cooler
and harder- hitting
Accumulator
Reduces irregular pulse pressure on hydraulic circuit Improved
striking power with supply of accumulated gas pressure Oil seal
Increase hydraulic circuit design at the side of under pressure ,
reduce the pressure of the oil seal ,improve service life
Chisel
High grade alloy steel and special heat treatment ensure efficiency
and good performance
Piston
Maximize impact energy
Manufactured with high quality nickel & vanadium alloy steel and
special hear-treated
Specifications:
Our hydraulic breakers are available in a range of sizes and
specifications to suit various excavator weights and power
requirements. Please contact us for specific model information,
including technical details and compatibility recommendations.
Key Features:
Exceptional Durability
Constructed with premium, wear-resistant materials, our breakers
withstand extreme conditions, ensuring a long operational life and
reliability.
High Impact Force
Featuring a high-powered impact system, our hydraulic breakers
achieve maximum breaking power for superior performance across
challenging materials such as concrete, stone, and asphalt.
Optimal Energy Efficiency
Our breakers utilize advanced hydraulic systems designed to
maximize impact while conserving energy, reducing fuel consumption,
and offering greater operational efficiency.
Rotating and Non-Rotating Models
We offer both rotating and fixed models to cater to varied job
requirements. Rotating models provide enhanced maneuverability,
allowing operators precise positioning without moving the base
machine.
Customizable Options
We support various customization options, including breaker sizes,
colors, and logo branding, ensuring the product meets your brand
and operational standards.
Low Noise and Vibration
Built-in dampening systems reduce noise and vibration, making them
suitable for urban or noise-sensitive environments.
![]() |
