SB102 SB202 SB302 Hydraulic Accumulator Membrane Rubber Diaphragm 3315238200 3315289000 3315235000

Hydraulic breaker diaphragm features
Function: The diaphragm serves as a partition between the hydraulic oil chamber and the nitrogen gas chamber within the breaker's backhead. It ensures that these two elements remain separate while allowing them to work together effectively.
Material: Hydraulic breaker diaphragms are typically made from high-quality rubber or elastomeric materials that can withstand both the pressure exerted by the hydraulic oil and the compressive forces of the nitrogen gas without deforming or rupturing. They must be resistant to wear, tear, and degradation from hydraulic fluids and environmental factors.
Design: The diaphragm is designed with precise dimensions to ensure a tight seal. It usually has reinforced edges to prevent tearing under extreme pressure fluctuations during operation.
Pressure Regulation: As hydraulic oil enters the breaker, it pushes against the diaphragm, which in turn compresses the nitrogen gas. This action transmits energy to the working piston, causing the chisel to strike. The diaphragm regulates this pressure transfer efficiently.
Energy Storage: The diaphragm also acts as an energy storage medium. When the hydraulic oil pressure decreases after each blow, the compressed nitrogen gas behind the diaphragm expands, pushing the hydraulic oil out to reset the piston, preparing the breaker for the next impact cycle.
Maintenance Importance: Since the diaphragm is subjected to continuous cycles of high-pressure changes, it is considered a wearable part and needs regular inspection and replacement when worn or damaged to maintain optimal hydraulic breaker performance.

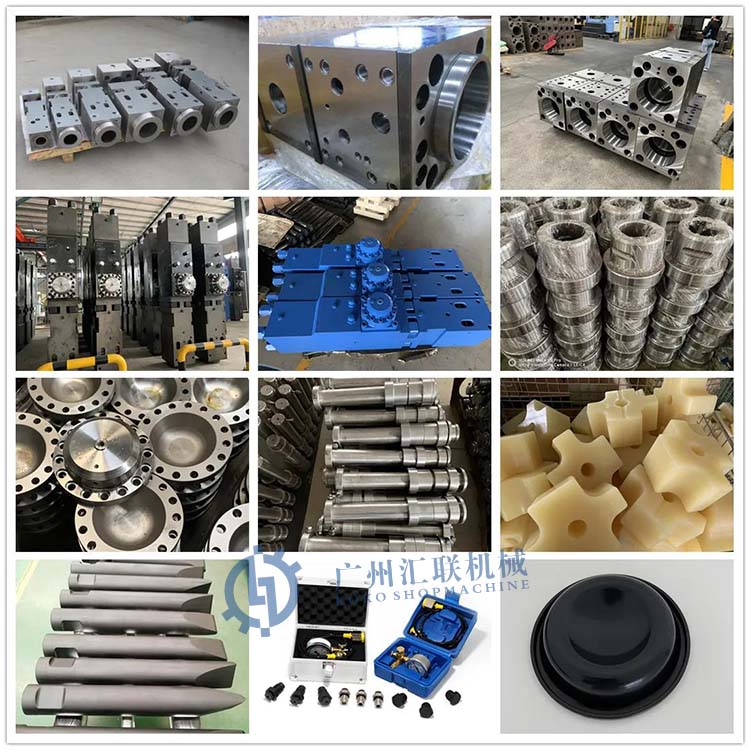

Our Company Parts list

Koko Shop Machine Co.,Ltd (Huilian Machinery) found in 2011, is a professional supplier who is specializd in construction machinery parts for excavator and attachments, including Hydraulic Hammer, Hydraulic Breaker Spare Parts, Quick Coupler, Hydraulic Grab, Ripper, Vibrator, etc. And, Excavator parts Engine, Hydraulic Pump, Swing motor, Travel motor, Main control Valve, Swivel Joint, Hydraulic seal kit. After 12 years developments, Huilian Machinery factory make quality parts with it's advance technology and advance machines. Hydraulic Breaker Parts suitable for: Atlas copco, Soosan, Furukawa, Atlas Copco, Alpha, Bretec, BTI, CATEEEEEE, CP, Daemo, DMB, Alicon, D&A, Doosan, EDT, Epiroc, Everdigm, Fine, Furukawa, General GB, Hammeroc HR, Hyundai HDB, Indeco HP MES, JCB, Kent, KCB, Komac, Komatsu JTHB, JKHB, Korota, Krupp, Kwanglim, Konan, Montabert, MSB, MTB, Noah, NPK, Okada, OKB, Omal, Poqutec, Powerking, Promove, Rammer, RB Hammer, RBI, Rhino, , Soosan, Stanley, Teisaku, T&H, Toku, Toyo, UBTECH, ECand so on. Hydraulic Excavator Parts suitable for: Komatsu, Hitachi, EC, Hyundai, Kobelco, Sumitomo, Kato, Doosan, JCB, cx, Sany, Liugong, XCMG, Xugong, Zoomlion, etc. OEM and ODM service offered.

In order to meet different customers' needs, Huilian Machinery also purchases Genuine Parts from German, Japan, Korea. And we established a long-term business relationship with customers from all over the world, like: U S A, Mexico, Saudi Arabia Kenya, Algeria, UAE, Russia, Morocco, etc. In 2023, Huilian Machinery became Distributors of easywork engineering machinery (SANY Group) in Russia and indonesia.

Koko Shop Machine is continuously seeking the chances to meet all the friends both from home and abroad for win-win cooperation.

And we believe that quality parts will take us to a further place. Let’s build a better tomorrow, together!

Introduction to Koko Shop Company

CertifiCATEEEEions

Enteprise Honor

Service Brand

Our Factory

Koko Shop Machine Management Department is an important control method for processing quality. It equipped with the most advanced inspection equipments The professional control devices,it can provide accurate reference data to choose the most suitable material and accessories, which also effectively control parts quality. Besides, it also provides digital information for engineers and quality controller to determine feasibility for spare parts after processing. This is the working processing of quality control.

Chooing steady quality supplier. After purchasing raw material, duing testing if it is proved well, then we will arrange these eligible matrial that come into warehouse.

When the spare parts finish and come into testing working conditon. Every worker will be responsible for their spare parts. They will give out fact testing date and results. After proving testing date is accord with delivery standard. Then Koko Shop Machine Quality Management Department will allow these spare parts that go to packing department and packing.

Before delivery, Koko Shop Machine Quality Management Department should check all mark and packing conditon. If it is prove it is accord with exporting standard and customer's requirement. Then they will allow these equipment come into fininshed product area.

Of course Koko Shop Machine Quality Management Department have the right to make sample testing for every production step to make sure product quality.
